358 high security anti cutting and climb fence panels high density mesh 12.5mm x 75mm high density mesh

Product Categories
Top Fencing Co.Limited
Contact Now

358 high security anti cutting and climb fence panels high density mesh 12.5mm x 75mm high density mesh

Brand Name : LNF-358 security mesh fence

Model Number : 3.00mm wire 4.00mm wire 12.70mm*76.20mm

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 16.66$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Color : RAL 6005 RAL 9001 and son

Panels Size : 2000mm /3000mm /2515mm

Materials : Q235

Finished : Hot dipped Galvanized and Powder Coated etc

Material : Low-Carbon Iron Wire

Type : Welded Mesh

Application : Protecting Mesh

Hole shape : Rectangle

Wire gauge : 3.0-6.0mm

Surface treatment : Electric galvanized and powder painted

Technique : Welded Mesh

Weave style : welded

Product name : High security complete system clearvu 358 security mesh

Width : 0.5-2.4m

Feature : Easily Assembled

Wire diameter : 3.5-5.0mm

Usage : Anti-climbing,fence

Aperture : 76.2x12.7mm/12.5x75mm/'3"x1/2"

Packing : Plastic film +pallet

Height : 1.8m-6m

Finish : hot dipped galvanized

Post : 80x80x2.5mm

Contact Now

High Security 358 Anti-Climb Fencing Panels Cut Proof Fence Panels

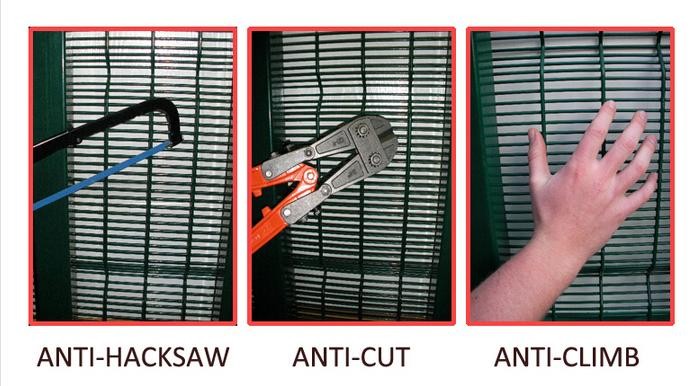

"358" comes from its measurements 3"×0.5"×8 gauges which equates to approx. 76.2mm×12.7mm×4mm (Length×Height×Diameter) in metric. 358 security fences are extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools. 358 fence are recognized as one of the most difficult to break through the barrier, because it is difficult to climb. It is called security fencing and high- strength fencing.
Specifications
Mesh:76.2mmx12.7mm
Wire Thickness:wire: 3.0mm or 4.0mm
Surface Treatment:Galvnized and electrostatic polyester powder coated or hot dipped galvanized
Panel Width:2.0mor2.5m
Height:2.0m 2.2m 2.4m 3.0m
Opening
mm
Wire Diameter
mm
Width
mm
Surface
Treatment
Height
mm
Post Height
mm
Post Type
mm
Fitting
1/2''*3''
12.7*76.2
3.0
3.5
4.0
2000
2200
2500
Electric galvanized then powder coated
Hot dip galvanized
1000
1200
1500
1800
2000
2200
2400
3000
1400
1600
2000
2300
2500
2800
3000
3800
Square Fence Post
60*60*2/2.5
80*80*2.5/3.0
Flat bar
Metal clips
Surface treatment
hot dipped galvanized wire + pvc painted
Electro galvanized wire + pvc painted
hot dipped galvanized after welding
Electro galvanized after welding
Hot dipped galvanized after welding + pvc painted
Electro galvanized after welding + pvc painte
Product Details
358 high security anti cutting and climb fence panels high density mesh 12.5mm x 75mm high density mesh
Application
Bridge anti-climb guarding & guard safety screening
Psychiatric hospital security fencing
Prison security fencing
Factory machine guards
Walkway security fencing
Airport security fencing
Shipping Port Security fencing
Electrical sub-station fencing
Gas pipelines security fence
High security living area and private field fence
358 high security anti cutting and climb fence panels high density mesh 12.5mm x 75mm high density mesh
Packaging & Shipping
358 high security anti cutting and climb fence panels high density mesh 12.5mm x 75mm high density mesh
358 wire fence system
Fence Panels
  • 3mm horizontal x 4mm vertical diameter high tensile wires
  • Aperture size - 76,2mm x 12,7mm

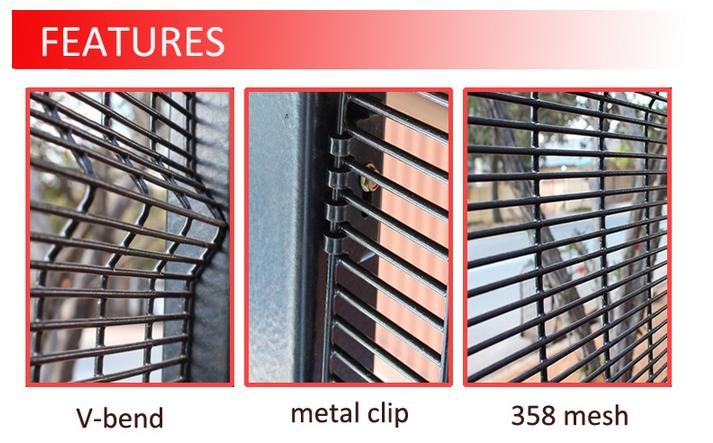

  • Panels reinforced with 4 x 50mm deep "V" formation horizontal recessed bands and2 x 75mm 70-degree flanges along sides.
OR
  • 4mm horizontal x 4mm vertical diameter high tensile wires
  • Aperture size - 76,2mm x 12,7mm
  • panel width 2515mm and height from 2000mm to 3600mm
Posts
  • Tapper posts with UV stabilized polymer end cap
  • Tapper: 85mm - 45mm / 150mm - 75mm
Detailed Images
358 high security anti cutting and climb fence panels high density mesh 12.5mm x 75mm high density mesh
358 high security anti cutting and climb fence panels high density mesh 12.5mm x 75mm high density mesh
358 high security anti cutting and climb fence panels high density mesh 12.5mm x 75mm high density mesh358 high security anti cutting and climb fence panels high density mesh 12.5mm x 75mm high density mesh
358 high security anti cutting and climb fence panels high density mesh 12.5mm x 75mm high density mesh358 high security anti cutting and climb fence panels high density mesh 12.5mm x 75mm high density mesh358 high security anti cutting and climb fence panels high density mesh 12.5mm x 75mm high density mesh358 high security anti cutting and climb fence panels high density mesh 12.5mm x 75mm high density mesh358 high security anti cutting and climb fence panels high density mesh 12.5mm x 75mm high density mesh

China 358 high security anti cutting and climb fence panels high density mesh 12.5mm x 75mm high density mesh factory

358 high security anti cutting and climb fence panels high density mesh 12.5mm x 75mm high density mesh Images
