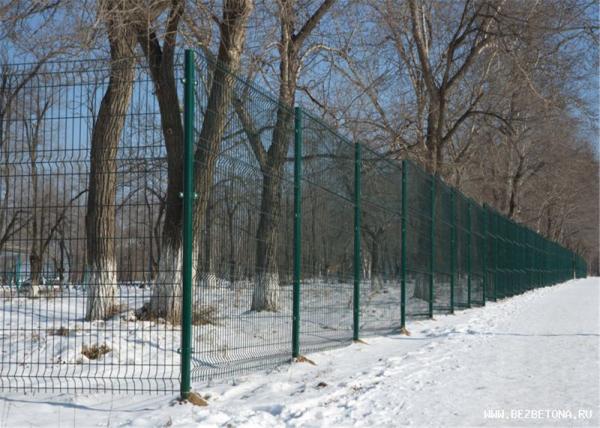

Curved 3D Mesh Fence China Manufacturer ,Made In China ,High Quality Curved Wire Fence
Characteristic:
Panel with bends is not only refinedly and scientific, but also stable and durable. It can reduce the wire's diameter by suing the bends, and the fastness of the panel won't be debase, then the cost can be reduced. It also can match with many kinds of post, and it's well suitable for a wide range of application and easy for installation.
Garden Fence:
Garden Fence:
Garden Fence:
Garden Fence:
Garden Fence:
Garden Fence:
Range of application:
Enclosing:
Road and transit(highway, railway, road, city transit)
Science & Industry Zone(factory, industry zone, sightseeing zone, new pattern farm)
Private grounds(courtyard, villadom)
Public grounds(park, zoo, train or bus station, lawn)
Commercial grounds(corporation, hotel, supermarket)
High Anti-Corrosion:
Using high quality iron rod as raw material, the welded panel, after galvanization, powders primer, and powders top coating, it can resist the corrosive and ultraviolet radiation very strongly.
| Surface Treatment | Min. | Max. |
| Electric Gal. | 20/m2 | 60g/m2 |
| Hot dipped Gal. | 35g/m2 | 700g/m2 |
| Powders Sprayed coating | 100 microns | 120 microns |
| PVC/PE dipped coating | 400 microns | 600 microns |
Popular Specification:
| Wire Dia. | Mesh Size | Panel Width | Panel Height | Fold No. | Post's height | Post Model |
| Fix Ⅰ | Fix Ⅱ |
|
3.5mm
4.0mm
4.5mm
5.0mm
| 100*50mm
100*55mm
120*55mm
150*55mm | 2.0m
2.255m
2.5m
3.0m | 800mm | 2 | 1200 | 900 | XLFP-03 |
| 1000mm | 2 | 1400 | 1200 |
| 1200mm | 2 | 1600 | 1400 |
| 1500mm | 3 | 2000 | 1700 |
| 1700mm | 3 | 2200 | 1900 |
| 2000mm | 4 | 2500 | 2200 |
| Wire Dia. | Mesh Size | Panel Width | Panel Height | Fold No. | Post's height | Post Model |
| Fix Ⅰ | Fix Ⅱ |
| 4.0mm
4.5mm
5.0mm
5.5mm
6.0mm | 200*50mm
200*55mm
200*60mm
200*65mm | 2.0m
2.255m
2.5m
3.0m | 830mm | 2 | 1200 | 900 | XLFP-04 |
| 1.30mm | 2 | 1400 | 1200 |
| 1230mm | 2 | 1600 | 1400 |
| 1530mm | 3 | 2000 | 1700 |
| 1730mm | 3 | 2200 | 1900 |
| 1830mm | 4 | 2300 | 2000 |
| 2030mm | 4 | 2500 | 2200 |
| 2230mm | 4 | 2700 | 2400 |
| 2530mm | 5 | 3000 | 2600 |
Fix Ⅰ:Buried in the ground. Fix Ⅱ: Installed with bottom base or feet.
Choice of colors:
Every RAL colour desired can be delivered, for example the colours corresponding to your corporate design.
- Common colors
- Dark Green RAL6005
- Pure White RAL9010
- Stone Grey RAL7030
- Jet Black RAL9005
- Anthracite Grey RAL7016
