High performance galvanized brc weld mesh panel fence

Name: High performance galvanized brc weld mesh panel fence
Brand: LNF-BRC Wire Fence
Price: 16.68 USD

China High performance galvanized brc weld mesh panel fence factory

Brand Name : LNF-BRC Wire Fence

Model Number : Top And Bottom Bended

Certification : ISO

Place of Origin : American ,Australia ,Canadan

MOQ : 500 liner meter

Price : 16.68$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Mesh : 50mm x 150mm or 50m x200mm

Diameter : 4.00mm -6.00mm

Treatment : Hot Dipped Galvanized or Powder Coated

Color : Available any RAL

Type : Weld Mesh

Warranty : 5-25 Years Depand on Treatment

Application : Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence

Customized : Available

Sample : Free but pay freight Cost

Feature : Top Triangle

Accessoires : Post and Clamp System

Contact Now

High performance galvanized arc weld mesh panel fence

1.The product parameters of galvanized arc weld mesh panel fence

Panel :

The panels are 3000mm wide and the heights range from 900 to 1800mm. The panels have a unique and

"user-friendly" closed beam section located along the top and bottom edge of the panel.

With no sharp or raw edges, Roll Top panels are suitable where safety is a consideration.

Mesh	Wire Thickness	Surface Treatment	Panel Width	Folds NOS.	Height
50x150mm or 55x150mm	4.00mm 4.50mm 5.00mm 6.00mm 7.00mm	Galvanized and Electrostatic polyester coated or Hot dipped galvanized	3.00 m	2	900mm
				2	1200mm
				2	1500mm
				2	1800mm

High performance galvanized brc weld mesh panel fence

Post- Round profile

Size	Wall Thickness	Surface Treatment	Holes	Height
48mm or 60mm	1.50mm 2.00mm 2.50mm	Galvanized and Electrostatic polyester coated or Hot dipped galvanized	With several holes drilled on itself	According to the panel height

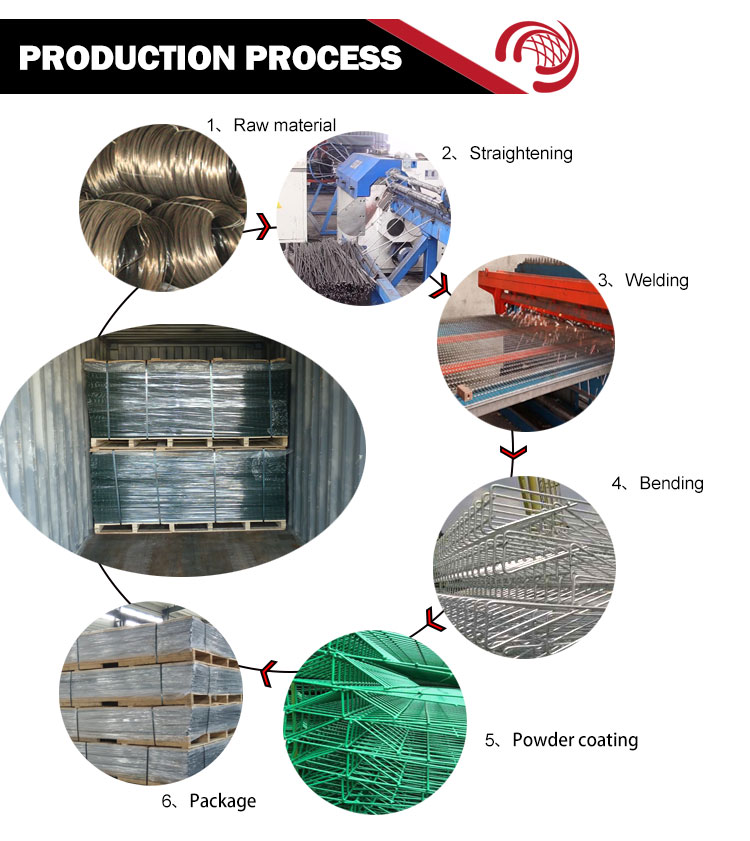

2.The product picture of galvanized arc weld mesh panel fence

3.The advantage of galvanized arc weld mesh panel fence

The fencing system incorporates user-friendly top and bottom "trigonal" edges to give enhanced

safety and rigidity to the fence. Recommended for use in parks, schools, playgrounds and sports stadiums, utilities.

Height	Mesh size	Fence size
1.2m	50*150mm	1.2*2.4m
1.5m/1.8m	50*150mm	1.5/1.8*2.4m
Note	Support special size,please provide your drawing before our offer.
