358 High Security Prison Mesh Fence

Name: 358 High Security Prison Mesh Fence
Brand: LNF-358 security mesh fence
Price: 16.66 USD

China 358 High Security Prison Mesh Fence factory

Brand Name : LNF-358 security mesh fence

Model Number : 3.00mm wire 4.00mm wire 12.70mm*76.20mm

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 16.66$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Color : Dark Green,Black ,Yellow

Packing : Pallet

Feature : Anti Cut ,Climb ,High Desnsity

Type : Trellis & Gates

Finish : Hot Dipped Galvanized and Powder Coated

Panel Size : 2700mm x 4500mm

Material : Low-Carbon Iron Wire

Application : Fence Mesh

Hole shape : Square,Rectangle

Wire gauge : 3.0-6.0mm

Surface treatment : PVC Coated PVDF Coated oxidation,galvanized,Electric galvanized and powder painted

Technique : Welded Mesh

Width : 2.2m-3m

Wire diameter : 3.5-5.0mm

Usage : Protection,Anti-climbing,fence

Aperture : 76.2X12.7mm,76.2x12.7mm/12.5x75mm/'3"x1/2"

Contact Now

358 High-Security Prison Mesh Fence

Product Description

358 Railway Station Fence also known as " PRISON MESH ", this production offers the best value for performance, durability and appearance.

358 High-Security Fence also known as " PRISON MESH ", it is a special fencing panel we can make in our city, this production offers the best value for performance, durability, and appearance.'358' comes from its measurements 3" x 0.5" x 8 gauge which equates to approx. 76.2mm x 12.7mm x 4mm in metric.

It is a professional structure designed for high-security environments, combined with a steel framework, coated with heavy zinc or RAL color Powder coating.

Features:
ANTI-CLIMB: More small openings, no toe or finger holds.
ANTI-CUT: robust wire and welded joints make cutting very difficult.
BETTER VISIBILITY: the flat, two-dimensional profile, easier to see through than chain link.

Specifications
1/2" x 3" x 8gauge,1" x 3" x 8gauge.Panel size from 2m to 4m.finishs by hot dipped galvanized or powder coated after gal.any color available.

'358' comes from its measurements 3" x 0.5" x 8 gauge which equates to approx. 76.2mm x 12.7mm x 4mm in metric. It is a professional structure designed for high security environments, combined with an steel framework, coated with heavily zinc or RAL color Powder coating.

358 Railway Station Fence is anti-cut, anti-climb, water resistance powder coated with marine grade Plastic. Popular product is ½” x 3” 8 gauge galvanized, and ½” x 3” 10.5 gauge GAW plus heavy duty PVC coating. Wire: 4 mm, galvanized + powder coating. General installation height is 2.0 m.

Detail Information of 358 Railway Station Fence
1. Height	1000mm to 6000mm, popular: 2500mm, 3000mm
2. Width	1000mm to 6000mm, popular: 2200mm, 3000mm
3. Wire thickness	3mm to 6mm, the most popular is 4mm (BWG Gauge 8#).
4. Hole size	76.2mm x 12.7mm (3 inch x 0.5 inch).
5. Post	Square post, popular: 60mm x 60mm, 80mm x 60mm
6. V-top	including angle iron, barbed wire, razor barbed wire.
7. Fastener	flat bar, screw, clamp
8. Surface treatment	hot- dipped galvanized electric galvanized with polyester powder coated (all colors in RAL)

1. Anti-climbing: more small openings, no toe or finger holds.
2. Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.

3. High strength welded at each intersection.
4. Durable: covering Galfan and polymer powder coating ensure a long service life.
5. Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.

Application

Application of 3D High Security 358 Anti climb Fence Panel

358 Railway Station Fence provides an ideal solution for a wide variety of high security perimeter and access control applications. The climb resistant mesh with its small apertures and welds at each intersection eliminate foot and finger holds, prevent objects being passed through and is particularly effective against the use of conventional hand cutting tools.

Feature

Feature of 358 Railway Station Fence

1. 358 Railway Station Fence, the close mesh means it is virtually impossible to climb. The close mesh also means that the fence is very difficult to cut with anything but power tools.

2. The panels are covered by a continuous heavy weight clamp bar, which offers no place for leverage to prise it off.

3. The system also has no removable fixings meaning that panels cannot be removed by would be intruders.

This system has good through visibility and is also aesthetically pleasing.

358 High-Security Fence applications:

Bridge anti-climb guarding & guard safety screening
Sub-station Security Fencing
Psychiatric hospital security fencing
Prison Security Fencing
Factory Machine guards
Walkway security fencing
Airport security fencing
358 wire mesh fence gates
Shipping Port Security fencing
Electrical sub-station fencing
Water Treatment Works
Gas pipelines Security Fence
High-security window grilles
Balustrades Security Fence

Product Tags:

anti climb fence

mesh fence panels

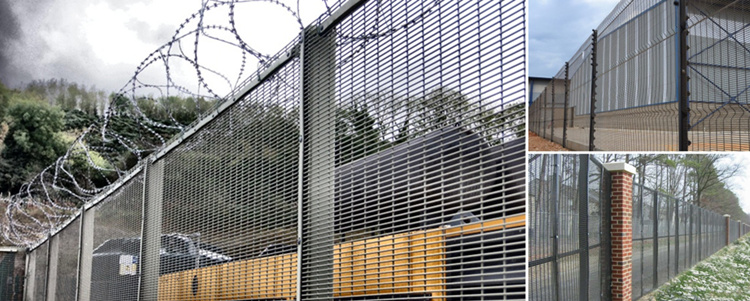

358 High Security Prison Mesh Fence Images
