Anti crawling 358 Security Wire Mesh Fence

Name: Anti crawling 358 Security Wire Mesh Fence
Brand: LNF-ClearVU Wire Fence
Price: 18.88 USD

China Anti crawling 358 Security Wire Mesh Fence factory

Brand Name : LNF-ClearVU Wire Fence

Model Number : 3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.88$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 Steel

Mesh Opening : 3" x 0.5" x 8gague wire,12.70mm x 76.20mm

Diameter : 4.00mm ,3.00mm

Size : Available Customized

Color : All RAL color card

Treatment : Hot Dipped Galvanized Or Powder Coated

V Beams : Available

Sample : Free but pay freight cost

Accessoires : Clamp,Post ,Y arm for barb wire

Feature : Anti ,Resistant ,Cut ,Climb

Main Market : Africa ,Oceania ,Aisa

Salt Spray Test : Pass

Contact Now

Anti crawling 358 Security Wire Mesh Fence

High Security Fence is a special fencing panel also called anti climb fence. With professional structure designed for high security environments. High Security Fence is extensively used when dependable space is paramount, It is designed to provide security and protection for industrial and commercial properties and public utilities. As well, it is suitable for military, airport, prison or security units, if together with electronic alarm and detection stems.

FeatureHigh security fence is with best value for performance, durability and appearance.'358' comes from its measurements3" x 0.5" x 8 gauge which equates to approx. 76.2mm x 12.7mm (3'' x 0.5''), Wire Dia: 4mm (Gauge 8) while in recently years, there are also customers ask for 3510 fence which equates to 76.2mm x 12.7mm (3'' x 0.5''), Wire Dia: 3mm (Gauge 10). 358 security fence is welded with high quality carbon steel wire, High weld strength at each intersection makes the fence strong durable and with below features:

ANTI-CLIMBMore small openings, no toe or finger holds.no climb and penetrate.

ANTI-CUTRobust wire and welded joints make it impossible cutting by use of conventional bolt or wire cutters.Good viewing visibility GOOD VIEWING VISIBILITY.In spite of the small mesh aperture the see-through characteristics remain unimpaired when viewing head-on and even at an angle to the fence. This is particularly important for clear camera surveillance.

DURABLELow maintenance and long life resulting from high quality

Mesh	Wire Thickness	Surface Treatment	Panel Width	Height
76.2x12.7 mm	Horizontal wire:3.0 ,3.5,4.0mm Vertical wire :4.0mm	Galvanized and Electrostatic polyester coated or Hot dipped galvanized	2.50mOr 2.20m	1800mm
				2000mm
				2100mm
				2200mm
				2400mm
				2500mm
				3000mm

FENCE HEIGHT	MESH SIZE(HxW)	MESH WEIGHT(kg)
1.27m	1270 x 2515 mm	29.1 kg
2.4m	2400 x 2515 mm	55.5 kg
2.7m	2700 x 2515 mm	62.5 kg
3.0m	3000 x 2515 mm	69.5 kg
3.3m	3300 x 2515 mm	76.4 kg
3.6m	3600 x 2515 mm	83.4 kg
4.0m	4000 x 2515 mm	92.6 kg
4.5m	4500 x 2515 mm	104.2 kg
4.8m	4800 x 2515 mm	111.1 kg
5.2m	5200 x 2515 mm	120.4 kg

C post	62mmx83mmx3mm
round post	outside diameter:80mmx3mm
rectangular post	60mmx80mmx3mm,60mmx120mmx3mm
post length	on request(normal 2.3mm-4m)
material	square steel pipe,round steel pipe,C type steel
finished	hot dipped galvanized,pvc coated
polyester painting color	Any RAL color (dark green, black, ect.)

High-security fencing, Prison Mesh Fencing or 358 Mesh Fencing as it is also known, is a highly robust steel Mesh Fencing system. It consists of horizontal and vertical mesh wires which are positioned close together to prevent people from fitting their fingers through the apertures, to ultimately climb the fencing.

Specifications

Panel Description
Mesh size	3"(75mm)*0.5"(12.5mm) resistance welded well at each intersection
Wire diameter	8 gauge(4mm) horizontal wire and vertical wire
Welded strength	Range 540-690N/m2
Surface treatment	hot dipped galvanized steel wire, then PVC powder coating (Min. 100 microns), or PVC powder painting. It provides additional protection and increases the potential life span
Installation	Overlapped 75mm minimum at each post (shown as the below photo) for securing with slotted clamp bars and M8 diameter bolts
Post Description
Material	high-grade steel for maximum strength and rigidity
Post section	60×60mm,80×60mm, 80×80mm or 120×60mm
Post plate thickness	2.5mm or 3.0mm
Finish	inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 microns)
Colours	Green RAL 6005, or Black RAL 9005
Post cap	80×60mm and 120×60mm post with metal caps, and 80×80mm post with a plastic cap
Metal clips and clamps are hot dips galvanized then powder coating in green or black colour.

Pictures Show

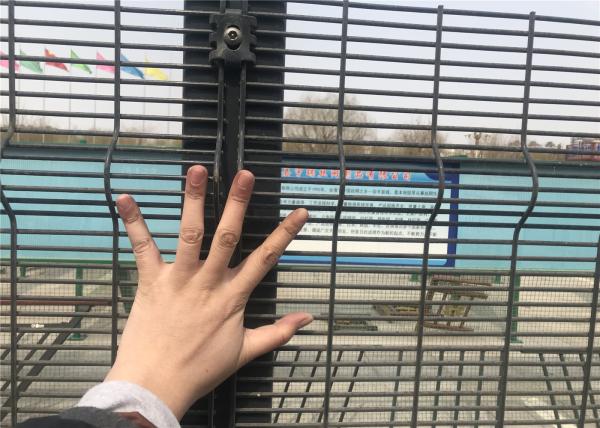

Anti crawling 358 Security Wire Mesh Fence
